Wireless CNC Laser Engraver Machine with 32Bit Mainboard

$699.95 $800.00
Unit price  per

Wireless CNC Laser Engraver Machine with 32Bit Mainboard

$699.95 $800.00
Unit price  per

ZBAITU Upgrade M37 FF80 SET Wireless CNC Laser Engraver Machine with 32Bit Mainboard, R10 Rotary roller, Cutting woods, acrylic

ZBT-Master is a newly launched machine with high cost performance. It is also an engraving machine and a cutting machine. It is equipped with the latest "FAC" spot compression technology 80W high-power laser module to make your engraving and cutting work easier. The engraving area is 37*37cm, with double Y-axis stepper motors, stable and fast running without deviation. Added the SD card offline working function, allowing the machine to work automatically, without having to connect to the computer and mobile devices at all times, and never drop the line.

Main Features

370*370mm engraving range]Ā Large engraving area, unlimited engraving height, fully satisfy your DIY engraving.

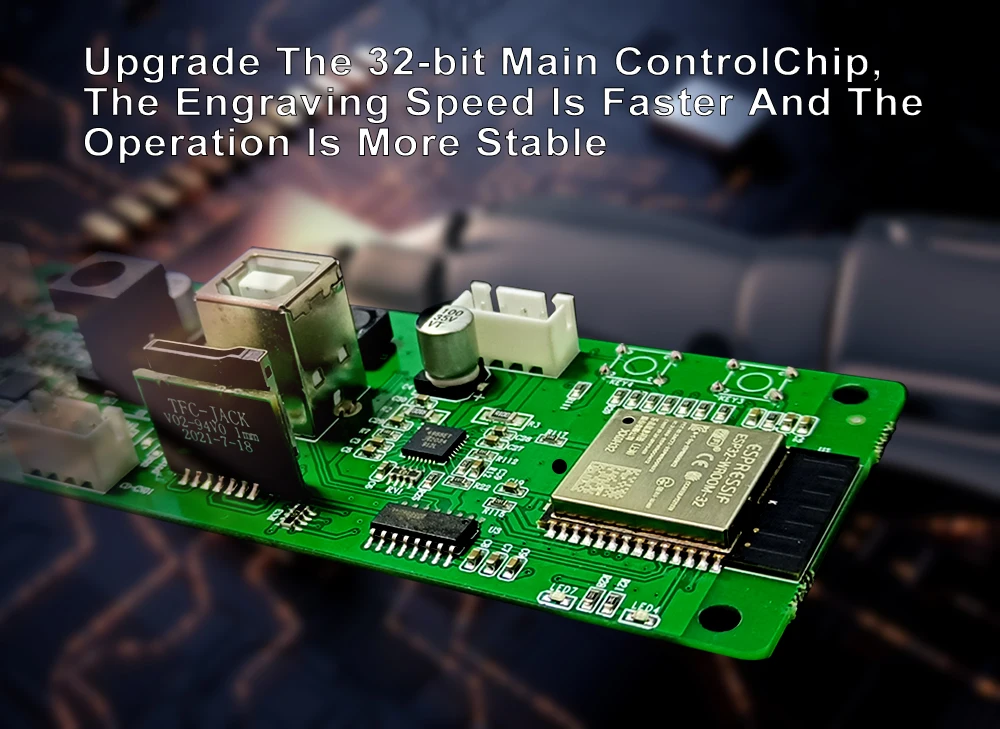

[Offline printing]Ā 32-bit MCU motherboard. A new SD card slot is added, which can control the machine by connecting to wifi and controlling the web program. With the offline working function of the SD card, the machine can run automatically without the need to connect to the device at all times.

[New eye protection design] The laser protective cover plays a very good role in protecting the glasses. At the same time, the structural design of the blower nozzle is added to the protective cover, and the laser blows away the smoke and debris when working, making your carving work more perfect.


[10W laser module] 10W laser module, "FAC" spot compression technology, combined light source technology of two laser diodes. At the same time, it has a material with high thermal conductivity, which can work continuously for 12 hours or even longer. Compared with some laser modules with temperature sensors, the laser module needs to be stopped after one hour of work has more advantages.


[Motor integrated drive module] Modular design, more stable performance, with three stepper motor drivers can provide faster moving speed, complete high-efficiency engraving.

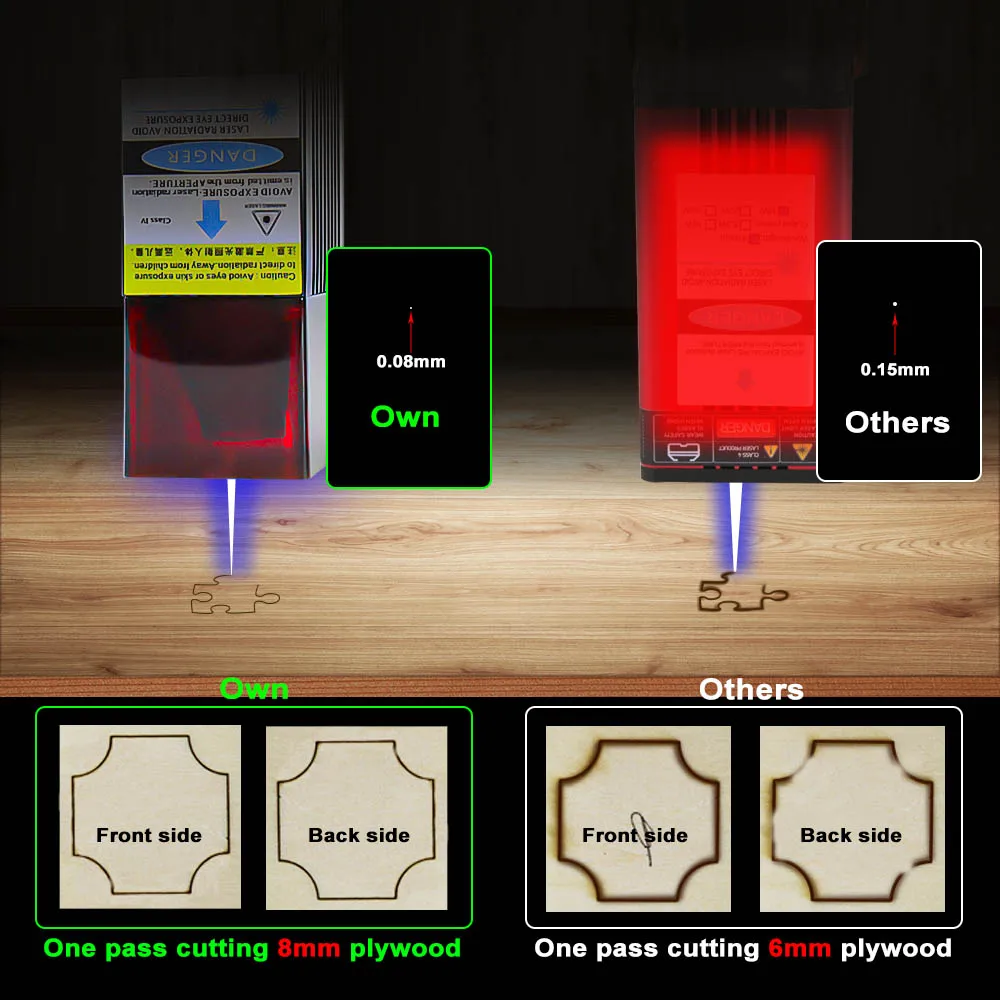

[Fixed focus laser] Adopting spot compression and polymerization technology, the energy of the light source is more concentrated, with high precision and high efficiency.


[Engraving mode] Laser engraving of photos, text, scanning, contours, and pixels.


[Professional software control] Benbox, GrblController, LiteFire, Laser GRBL, etc.


[Support for engraving multiple materials] Stainless steel, aluminum, plastic, ceramic, wood, bamboo, paper, leather, rubber, sponge paper, etc. (Stone, glass, reflective or transparent materials are not supported.)



Specification


Brand: ZBAITU

Model: ZBT-Master

Type: Laser Engraving & Cutting Machine

Material: Aluminum Alloy + Acrylic

Laser power: 80W (effect power: 80W, optical output power: 10W, electric power: 12V-4A)

Focal length: 45mm

Accuracy: 0.08*0.08mm

size and weight

Product weight: 2.9kg

Package weight: 4kg

Product size (L*W*H): 54.00*50.00*15.00 cm/21.25*19.68*5.90 inches

Package weight (L*W*H): 65.00*23.00*14.00 cm/25.59*9.05*5.51 inches




Please Note


If there is a customs spot check, the customs duty is borne by the customer,hope you can understand.

Do not accept bad reviews and disputes due to tariffs.




FQA :


Q: 20w/40w/50w/60w/80w is the higher the better of numberļ¼Ÿ how should I choose?


A: In fact, 20w/40w/50w/60w/80w is only the output power of the machine, not the key to determining the engraving/cutting effect. The output power of the laser module is the key point. If the output power of an engraving machine is 60W, and the output power of the laser module is 5~5.5w, That's effect is not much different from that of a machine with a 40W output power and 5~5.5w laser module output power. you can choice which meet your needs.



Q: Why is the title says 80W, 40W, but the Laser is 10W or 5Wļ¼Ÿ


A: 80w 40W is the effective power of Laser machines, its actual laser output power should be 10W/5W.



Q: Why you do you not update your software?


A: We do not sell any software, it just can be work with the machine, we can guide customer how to use it but do not have any way to update it. if you have any question about using software, just feel free to contact with our service team via order page on Aliexpress



Q: Why I do not get a reply?


A: Please pay attention to confirm that you are contact with

ZBAITU Global Store on Aliexpress instead of other merchants, Our service team deal with any question within 24hrs every working day.



Q: Is it possible to engrave metal?


A:Yes, the ZBAITU laser Engraver uses compressed spot technology with a spot size of only 0.08mm and supports engraving stainless steel and various coated metals.



Q: Can this machine only cut dark acrylic?


A:Yes, the laser cutter can cut dark acrylic, but not transparent acrylic.



Q: Is there user manual?


A: Yes, there are user manual in paper in the box, also some assembly videos.



Q: Can i get a assure after purchase?


A: Of courseļ¼ŒZBAITU Global Store provide 100% satisfied for sureļ¼Œyou can enjoy 1 year of free replacement for any accessories. you just need pay for the shipping cost.
