Features:

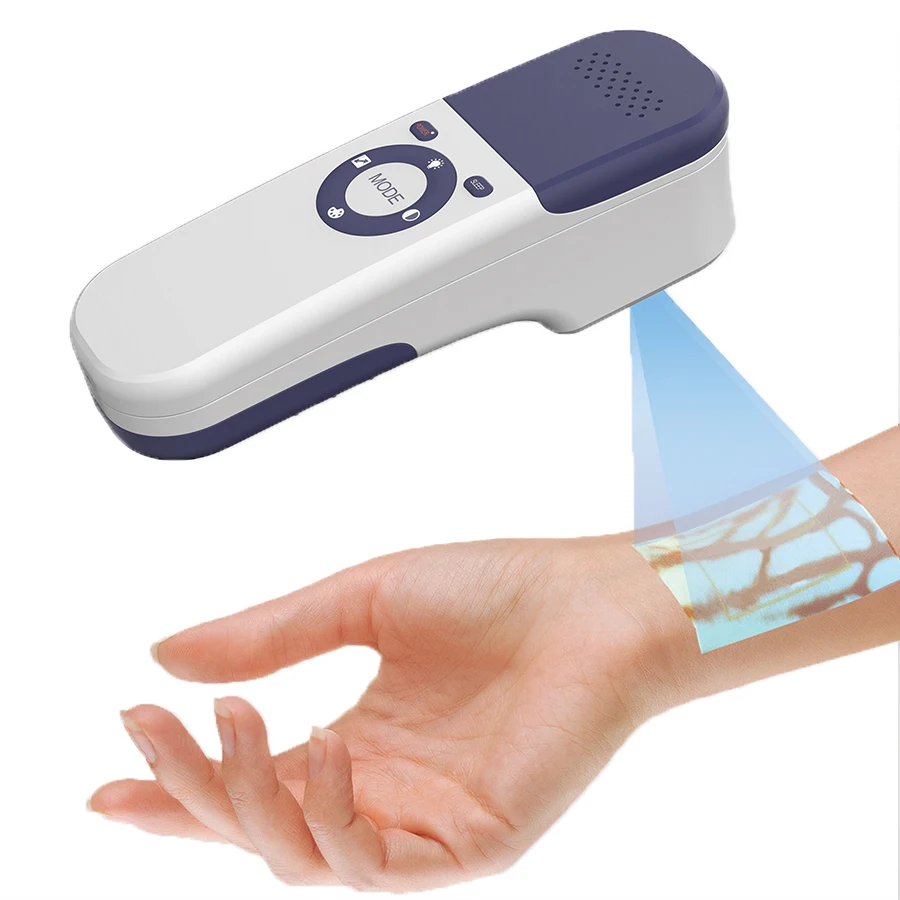

Vein Finder is a portable vein-finding device. It can project the blood vessels' image on the skin surface accurately and timely.
-The ergonomic design makes it very comfortable to hold. And the optional desktop stand and mobile trolley are available for
multiple application situations.
-Help doctors and nurses easily find veins of various patients, such as obesity, hairy, or dark skin people, etc. It highly
increases the success rate of puncture thus reducing the cost and pain.
-This device also can be used to examine patients with varicose veins, and avoid closed or bifurcated veins.
-This device also can be used to examine patients with varicose veins, and avoid closed or bifurcated veins.
This machine has various user-defined functions, which can adapt to different ages, body shapes, skin colors, weights, and various operating environments.
- -7 Colors Available: Suitable for different skin colors or environments.
- -3 Sizes Available: Suitable for adults, children, and newborns.
- -5 Levels of Brightness: Adjust the projection image to the most comfortable brightness.
- -Inversion: Reduce arm hair interference and make blood vessels clearer.
- -Enhancement Mode: Enhance the clarity of blood vessel detection.
- -Sleep Mode: enter into low power mode when the user needs short intervals and can be waked up quickly.
-
Specification:
- Vein Detecting Light Source: Near-infrared light
- Infrared Light Wavelength: 8mm
- Best Imaging Distance: 15-25cm
- Accuracy of blood vessel position: ±0.5mm
- Accuracy of blood vessel resolution: ±0.5mm
- Low working noise ≤40Bp
- Battery Charge Time: 3 hours
- Battery: 3400mA rechargeable lithium battery
- The power supply of charging: 5V 2.0A, 100V-240V 50Hz-60Hz
- 7 Colors Available: Suitable for different skin colors or environments
- 3 Sizes Available: Suitable for adults, children and newborns
- Dimension (L*W*H): 200mm*65mm*60mm
- Weight: 280g
Standard Configuration:
- Main machine
- Charging cable
- Charging adapter
- Aluminum Carrying Case
- User's manual
- Calibration card
- Warranty card
-
